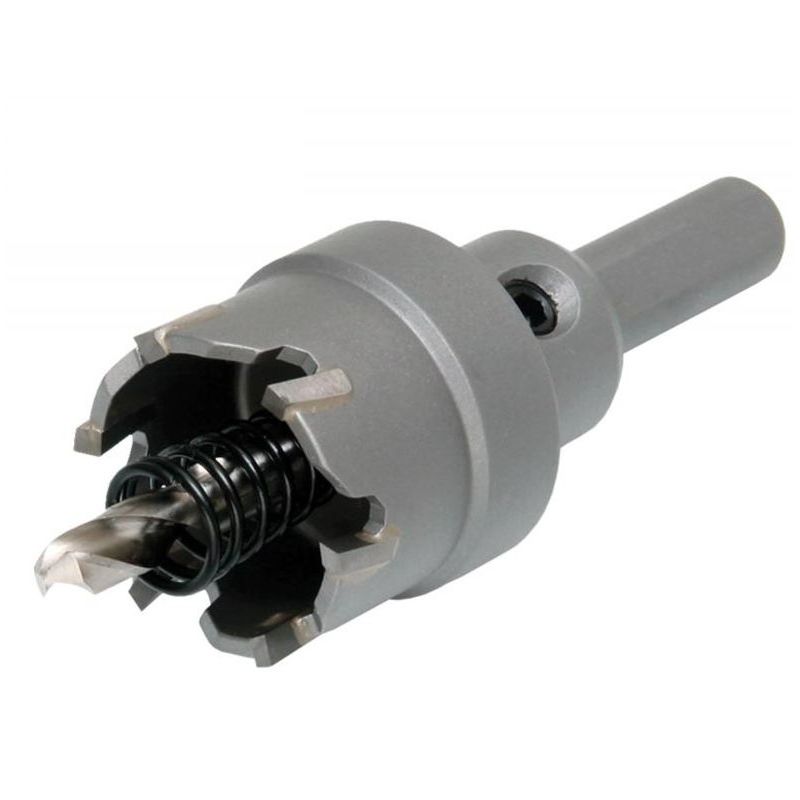

Tork Craft Hole Saw TCT Steel & Stainless - 038mm

Application:

The multiple precision ground Tungsten Carbide Tipped hole saw has been specially developed to cut holes in hard materials such as plastic and metals up to 4.5mm in thickness.

The hole saw can be used to cut into:

• Mild steel sheets


• Stainless steel sheets


• Steel pipes


• Cast iron


• Fiberglass


• Fibre-reinforced plastic (FRP)


• Aluminium


• Brass


• Vinyl


• Plastic

IMPORTANT: For the best results and for safety reasons, use the recommended rotation speed for the material being drilled into.

Lubricant tip: Use paraffin or beeswax when cutting into aluminium. Use CT-90 or a general-purpose lubricating oil when cutting into steel.

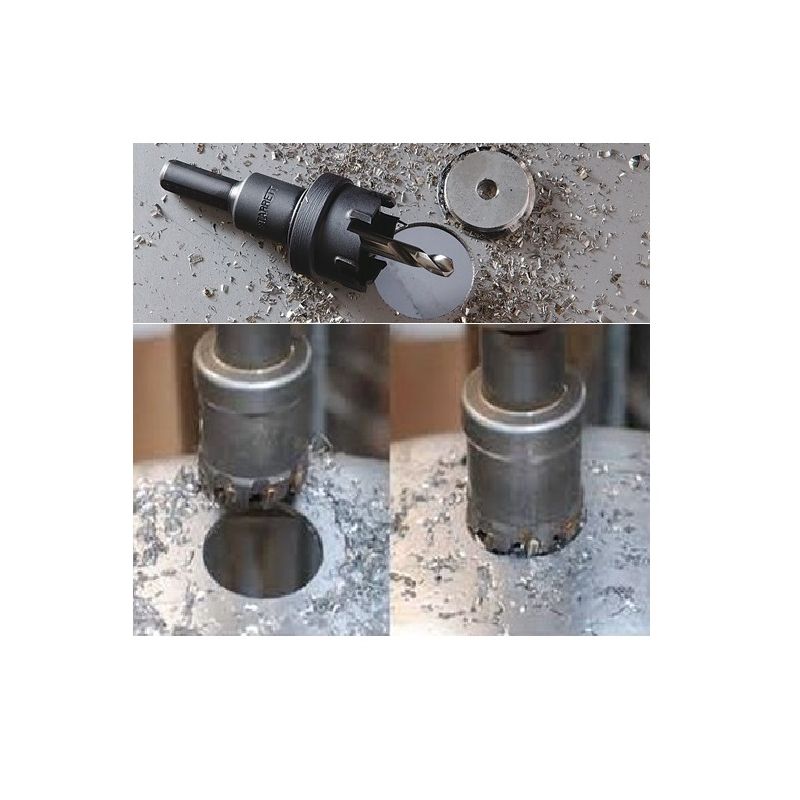

Using a hole saw:

To use a hole saw, you need the following accessories:

• A portable drill or stationary drill with a 3 jaw chuck.


• The necessary safety equipment. Safety goggles, gloves and hearing protection.

For longer hole saw life, use the following instructions:

1. Use the correct rotation speed. If the speed is too high or too low, it will have an effect on the cutting edge on the hole saw and decrease the life expectancy.


2. Clear away metal filings frequently to prevent the hole saw from overheating.


3. Always apply the necessary pressure for the intended use. Too much pressure can destroy the teeth when cutting in metals.


4. Keep the drill going straight to avoid binding the hole saw.
